Metal Lath

We are also in a position to supply metal lath and other related construction products.

Metal lath: diamond mesh lath
FIXINGS - Lath is produced in two main forms Sheets of diamond patterned Mesh (Metal Lath) Sheets of herringbone patterned mesh having V profiled ribs between the mesh areas. (Rib Lath)

Galvanized metal lath specification table:
Lath	Material	Thickness (mm)	Weight kg/sqm	Mesh Size (mm)
Galv, 2.5 m × 0.7 m	Galvanized Steel	0.50	1.11	9.0
Galv, 2.5 m × 0.7 m	Galvanized Steel	0.40	0.90	9.0
SS, 2.5 m × 0.7 m	Stainless Steel	0.46	1.15	9.2 × 28.6

Mesh Size is measured as the shortest distance in the diamond shape.

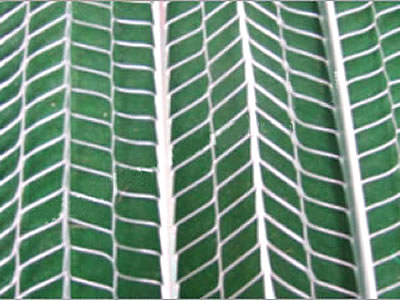

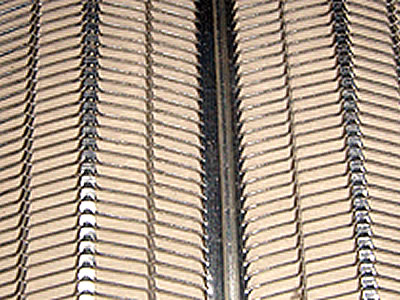

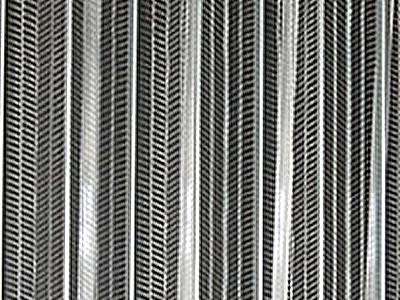

Galvanized and stainless steel rib lath specification table:
Rib Lath	Material	Thickness (mm)	Weight kg/sqm	Rib Depth (mm)
Gal.; 2.5 m × 0.6 m	Galvanized Steel	0.40	1.66	8.00
Gal.; 2.5 m × 0.6 m	Galvanized Steel	0.50	1.86	8.00
Red-Rid; Pre-Gal.; 2.5 m × 0.6 m	Pre-Galvanized steel DX51D+Z450	0.50	1.93	8.00
SS.; 2.5 m × 0.6 m	Stainless Steel	0.30	1.16	8.00

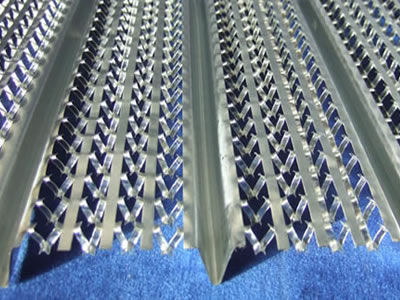

This Rib style has pieces of metal sticking out to form a pocket and therefore catches more plaster.

Galvanized steel metal lath coils specifications table:
Coils	Material	Width	Gauge (mm)
Mesh Coil 65 mm × 20 m	Galvanized Steel	65mm	0.40
Mesh Coil 115 mm × 20 m	Galvanized Steel	115mm	0.40
Mesh Coil 175 mm × 20 m	Galvanized Steel	175mm	0.40
Mesh Coil 225 mm × 20 m	Galvanized Steel	225mm	0.40
Mesh Coil 305 mm × 20 m	Galvanized Steel	305mm	0.50
S/S coil 65 mm × 20 m	Stainless Steel	65mm	0.40
S/S coil 115 mm × 20 m	Stainless Steel	115mm	0.40
S/S coil 175 mm × 20 m	Stainless Steel	175mm	0.40
S/S coil 225 mm × 20 m	Stainless Steel	225mm	0.40

Note: the gauge is the thickness of the metal.
