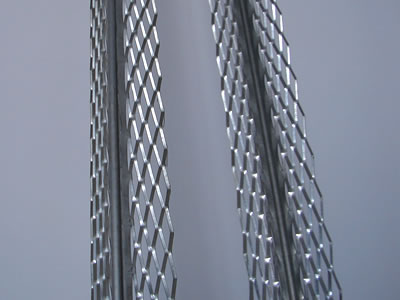

Expanded Mesh Corner Bead

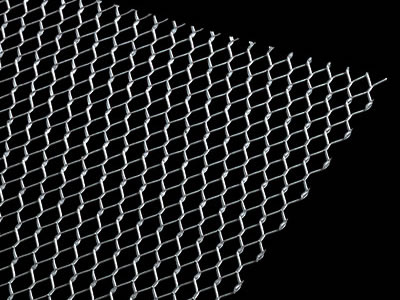

This kind of corner bead can also be written as expanded corner beads or diamond mesh corner beads. Popularly made of expanded metal sheets, it has a opening pattern of diamond mesh.

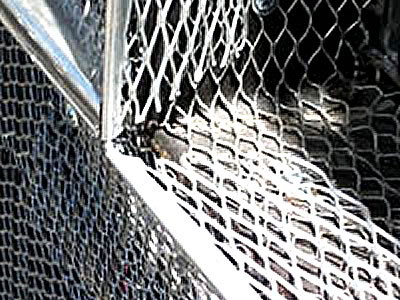

Expanded diamond mesh corner bead serves as a plastering stop to ensure a neat finish. It is designed to provide strong corner reinforcement for conventional plaster applications. A solid metal nose provides a straight, rigid ground and the 2-5/8" flanges can be easily flexed over irregular, uneven surfaces.

The expanded beads are easily installed using standard industry practice. Plaster keys near solid nose provide reinforcement where needed most to ensure straight corners. we offer this product in both galvanized steel and zinc plating for your choice. The expanded flange grounds can be 3/8", 1/2", 5/8", or 3/4" (1", 1-1/8", 1-1/4" and 1-1/2").

Wide expanded metal flange beads provide additional rigidity and strength with its reinforced flanges. This product is for use on masonry, beams, and column fireproofing. Combination of expanded flanges and pronounced bead nose ensures successful corner alignment and efficient plaster keying from edge to nose. This product is produced in the material of galvanized steel (zinc coating is available for special order) with full stiffening ribs to enhance durability.

Angle Bead Materials: Galvanized Steel, Aluminum, Stainless Steel, Zinc (99% pure zinc) Alloy.
Wing Size: 30 mm, 40 mm, 50 mm, 60 mm, 70 mm.
Length: 1 m - 2.85 m.
